Frogr 0.9 released

So, after a bit more than one year without releasing any version of frogr, I finally managed to get some “spare” time to put all the pieces together and ship the ninth version of it, which I believe/hope is going to be a quite solid one.

Frogr 0.9

In all honesty, though, this version does not come with many new features as the previous ones, yet some changes and fixes that I believe were quite necessary, and therefore should help improving the user experience in some subtle ways.

For instance, the layout of the dialog to edit the details of a picture has changed (as per Ana Rey‘s comments during GUADEC) to enable a more efficient usage of vertical space, so much needed these days in small widescreen laptops. Of course, design-wise still sucks, but I believe it’s much more convenient now from a pragmatical point of view.

Also, frogr is now a little bit more “modern” in things such as that it now supports GStreamer 1.0 (0.10 still supported), a lot of deprecated code (e.g. Stock items, GtkActions) has been replaced internally and it now integrates better with GNOME Shell’s search box. Ah! and it also now provides an AppData file to integrate with GNOME Software Center, which is a nice touch too.

Another interesting thing is that I finally fixed the problem that we have with multiple selections in the main view, which was neither intuitive nor very useful, as Ctrl and Shift modifiers did not work as expected. So, from now on, it is finally possible to work with disjoint multiple selections of pictures, a feature I was missing so much.

Last, I fixed two important problems in the code that caused frogr consume two much memory, specially after uploading pictures. It was a quite severe problem since frogr was not properly freeing the memory used by pictures even after those were uploaded and removed from the UI, causing important issues in cases where people tried to upload a lot of pictures at once. It’s hopefully fixed now.

And that’s all I think. As usual, you can check the website of the project to know how to install frogr on your system if you don’t want to wait for your favourite distribution to ship it, or if you just want to check more information about the project or to contribute to it.

FOSDEM 2014

Ah! By the way… I’m going to FOSDEM again this year, but this time by train. Can’t wait to be there! :)

WebKitGTK+ Hackfest 2013: The Return of the Thing

The WebKitGTK+ Hackfest 2013As many other WebKitGTK+ hackers (30 in total), I flew last Saturday to A Coruña to attend the 5th edition of the WebKitGTK+ Hackfest, hosted once again by Igalia at their premises and where people from several different affiliations gathered together to try to give our beloved port a boost.

As for me, I flew there to work mainly on accessibility related issues, making the most of the fact that both Joanie (Orca maintainer) and Piñeiro (ATK maintainer) would be there too, so it should be possible to make things happen faster, specially discussion-wise.

And turns out that, even if I feel like I could have achieved more than what I actually did (as usual), I believe we did quite well in the end: we discussed and clarified things that were blocking the mapping of new WAI-ARIA roles in WebKitGTK+, we got rid of a bunch of WebKit1-specific unit tests (Joanie converted them into nice layout tests that will be run by WebKit2GTK+ too), we got a few new roles in ATK to be able to better map things from the web world and and we fixed a couple of issues in the way too.

Of course, not everything has been rainbows and unicorns, as it seems that one of the patches I landed broke the inspector for WebKit2GTK+ (sorry Gustavo!). Fortunately, that one has been rolled out already and I hope I will be able to get back to it soon (next week?) to provide a better patch for that without causing any problem. Fingers crossed.

In the other hand, my mate Brian Holt joined us for three days too and, despite of being his first time in the hackfest, he got integrated pretty quickly with other hackers, teaming up to collaborate in the big boost that the network process & multiple web processes items have went through during the event. And not only that, he also managed to give a boost to his last patch to provide automatic memory leak detection in WebKitGTK+, which I’m sure it will be a great tool once it’s finished and integrated upstream.

Anyway, if you want more details on those topics, or anything else, please check out the blog posts that other hackers have been posting these days, specially Carlos’s blog post, which is quite extensive and detailed.

Samsung LogoOf course, I would like to thank the main sponsors Igalia and the GNOME Foundation for making this thing happen again, and to my employer Samsung  for helping as well by paying our trips and accommodation, as well as the snacks and the coffee that helped us stay alive and get fatter during the hackfest.

Last, I would like to mention (in case anyone reading this wondered) that it has indeed felt a bit strange to go the city where I used to live in and stay in a hotel, not to mention going to the office where I used to work in and hang around it as a visitor. However, both my former city and my former colleagues somehow ensured that I felt as “at home” once again, and so I can’t do anything about it but feeling enormously grateful for that.

Thank you all, and see you next year!

Greppin’ in the past with git

It seems that one can never stop learning new things with git, no matter for how long you’ve been using it (in my case, I’m a proud git user since 2008), because today I added a new trick to my toolbox, that already proved to be quite useful: “grepping” files in a git repository, as you would do it with git grep, but using a commit-id to limit the search to a specific snapshot of your project.

In other words, I found that it’s possible to do things like, say, grep files to search for something in your repository considering how it was, say, some commits ago.

This is the “magical” command:

    git grep <search-params> <tree-id>

This is what I get if I try to search for updateBackingStore() in my local clone of WebKit, as if my current branch was “50 commits older” than what it actually is:

$ git grep updateBackingStore HEAD~50
0ae236137d560da6ca889a826a8f3d023364a669:AccessibilityObject.cpp:void AccessibilityObject::updateBackingStore()
0ae236137d560da6ca889a826a8f3d023364a669:AccessibilityObject.h:    void updateBackingStore();
0ae236137d560da6ca889a826a8f3d023364a669:AccessibilityObject.h:inline void AccessibilityObject::updateBackingStore() { }
0ae236137d560da6ca889a826a8f3d023364a669:atk/WebKitAccessibleUtil.h:        coreObject->updateBackingStore(); \
0ae236137d560da6ca889a826a8f3d023364a669:atk/WebKitAccessibleUtil.h:        coreObject->updateBackingStore(); \
0ae236137d560da6ca889a826a8f3d023364a669:atk/WebKitAccessibleWrapperAtk.cpp:    coreObject->updateBackingStore();
0ae236137d560da6ca889a826a8f3d023364a669:ios/WebAccessibilityObjectWrapperIOS.mm:    m_object->updateBackingStore();
0ae236137d560da6ca889a826a8f3d023364a669:ios/WebAccessibilityObjectWrapperIOS.mm:    m_object->updateBackingStore();
0ae236137d560da6ca889a826a8f3d023364a669:mac/WebAccessibilityObjectWrapperBase.mm:    // Calling updateBackingStore() can invalidate this element so self must be retained.
0ae236137d560da6ca889a826a8f3d023364a669:mac/WebAccessibilityObjectWrapperBase.mm:    m_object->updateBackingStore();

I don’t know about you, but I find this quite useful for me to answer questions such as “Where was this function being used in commit X?”, and things like that.

Anyway, you might have noticed that I mentioned <tree-id> in the recipe instead of <commit-id>, yet I used HEAD~50 in the example, which is actually a commit-id. And still works.

And the short explanation, without trying to explain here all the different kind of data types that git keeps internally for every repository (mainly commitstrees and blobs), is that git is smart enough to find the right tree-id associated to a given commit-id by just considering the current path inside the repository and the tree-id associated to the top directory for a given commit.

But how to know that tree-id myself in case I want to? Easy, just pretty print the full information of the commit object you’re interested in, instead of only seeing the abbreviated version (what you usually see with git show or git log:

$ git cat-file -p HEAD~50
tree 0ae236137d560da6ca889a826a8f3d023364a669
parent bdb7a7949a29988da3fe50a65d6c694d5084d379
author [...]

See that tree thing in the first line? That’s the tree-id that git needs for grepping, which as you can see can be easily extracted from a particular commit. Actually, you could get easily the tree-id for any subdirectory from this point, by using the git ls-tree command:

$ git ls-tree 0ae236137d560da6ca889a826a8f3d023364a669
100644 blob 3fe2340c9614e893f0dfeb720f23773bbf1ea076	.dir-locals.el
100644 blob 741c4d53b5a0338cf36900a283e89408d0f9d457	.gitattributes
100644 blob f45a975762be9a429aa971c18da01b433c559553	.gitignore
100644 blob d571aa28ea86c14c7880533bf3ba68e9ef4b3c81	.qmake.conf
100644 blob 10f85055ae9f3823f0d20808599f644c18af7921	CMakeLists.txt
100644 blob 5eb66e7bcbc7543eb3a4dbf183a9043545776659	ChangeLog
100644 blob 7dbe9d2e0029bab47b8b2b22065a1032ecfe4434	ChangeLog-2012-05-22
040000 tree d42a0b3121ed7993cfd250426d20472769760f87	Examples
100644 blob 78d89e5c70ad56c38b0c25e7705d42fa380c4ee0	GNUmakefile.am
040000 tree 4a9e87fc1f35efa1349a18b1df694530c981c57e	LayoutTests
100644 blob 14e33157011157797dac62c494bac0bf254d7c2f	Makefile
100644 blob ee723d830dea51d1ce9e2d1ad8c985eeca2d4f3f	Makefile.shared
040000 tree 20c763d6a4e8749ad9e041e8372e9f47dc722f45	ManualTests
040000 tree 660d88b926cf618ab9e1612b8e2a3e97b15dbcbe	PerformanceTests
040000 tree fbf9703d3e9a9e4cf2ff10817c99ba3a5de87410	Source
040000 tree 346110c441a674334f5f56ef42b9dd40def89c76	Tools
040000 tree 262cb11d9b491be35daee570f9b825bce5715579	WebKit.xcworkspace
040000 tree b9e48a7a24b4973b253ee14053808b40d67c94aa	WebKitLibraries
040000 tree adce37b690957abdd21d2dd8ff77302c5a5a9071	Websites
100755 blob befd429487fc5ac9bb3494800f4eeaef1e607663	autogen.sh

And of course, “navigating” with more calls to git ls-tree you could also get the tree-id for a specific subdirectory, in case you wanted to constraint the search to that specific path of your repo.

However, considering that git is so good at translating a commit-id into a tree-id, my personal recommendation is that, instead, you first cd into the path you want to focus the search in, and then let git  do its “magic” by just using the git grep <search-params> <tree-id> command.

So that’s it. Hope you find this useful, and please do not hesitate to share any comment or suggestion you might have with regard to this or any other “git trick” you might know.

I honestly love using git so much that sometimes I wonder if coding is not just a poor excuse to use git. Probably not, but the thing is that I can not imagine my life without it anymore. That’s a fact.

Goodbye Pango! Goodbye GAIL!

As I mentioned in my previous post before GUADEC, I’ve been putting some effort lately on trying to improve the accessibility layer of WebKitGTK+, as part of my work here at Samsung, and one of the main things I’ve worked on was the removal of the dependency we had on Pango and GAIL to implement the atk_text_get_text_*_offset() family of functions for the different text boundaries.

And finally, I’m really happy to say that such a task is complete once and for all, meaning that now those functions should work as well or as bad on WebKit2GTK+ as they do in WebKitGTK+, so the weird behaviour described in bug 73433 is no longer an issue. You can check I’m not lying by just taking a look to the commit that removed both all trace of Pango and GAIL in the code, as well as and the one that removed the GAIL dependency from the build system. And if you want more detail, just feel free to check the whole dependency tree in WebKit’s bugzilla.

This task has been an interesting challenge for me indeed, and not only because it was one of the biggest accessibility related tasks I’ve worked on in WebKitGTK+ since late 2012 (so I needed to get my brain trained again on it), but also because reimplementing these functions forced me to dive into text editing and accessibility code in WebCore as I never did before. And it’s so cool to see how, despite of having to deal eventually with the frustrating feeling of hitting my head against a wall, at the end of the day it all resulted on a nice set of patches that do the work and help advance the state of the ATK based accessibility layer in WebKitGTK+ forward.

Anyway, even though that is probably the thing that motivated me to write this blog post, that was not the only thing that I did since GUADEC (which has been a blast, by the way):

On the personal side, I’ve spent two lovely weeks in Spain on holidays, which was the biggest period of time I’ve been outside of the UK since I arrived here, and had  an amazing time there just “doing nothing”(tm) but lying around on the beach and seeing the grass grow. And there is not much grass there anywhere, so you can imagine how stressful that life was… it was great.

In the other hand, on the professional side, I’d say that one of the other big things that happened to me lately was that I finally became accepted as a WebKit reviewer, meaning that now I can not only help breaking the Web, but also authorize others to do it so. And while agree that might be fun in some way, it probably would not be very cool, so forgive me if I try instead to do my best to help get exactly the opposite result: make things work better.

And truth to be told, this “upgrade” came just with perfect timing, since these days quite some work is being done in the accessibility layer for both the WebKitGTK+ and the WebKitEFL ports thanks also to my mates Denis NomiyamaAnton ObzhirovBrian Holt and Krzysztof Czech from Samsung, and that work would ideally need to be reviewed by someone familiar with the ATK/AT-SPI based accessibility stack. And while I’m still by far not the most knowledgeable person in the world when it comes to those topics, I believe I might have a fairly well knowledge about it anyway, so I assume (and hope) that my reviews will certainly add value and help with those specific pieces of work.

And as a nice plus, now I can finally “return the favour” to the only accessibility reviewer WebKit had until now (Chris Fleizach) by helping reviewing his patches as well, in a similar fashion to what he has been tirelessly doing for me for the last 3 years and a half. Yay!

To finish , I’d like to get back again to the original topic of this post and say a big “thank you” to everyone who helped me along the way with the removal of Pango and GAIL from the ATK specific code. Special thanks go to those who spend time performing the code reviews, as it’s the case of Martin, Gustavo and Chris. I wouldn’t be writing this post otherwise.

Thanks!

I’m going to GUADEC!

I'm attending GUADECOne year again GUADEC is approaching and, also again, I’m very happy to say that I’ll be there as well this time, even if I have to recognize it was not on my plans for this year, at least not initially.

And the reason why it was not initially in my plans was mainly because I’ve been already through quite some changes during these past months year, and my family just came over to the UK two months ago. This means that, even I already arrived by the beginning of the year, we just started to settle here as a family a few weeks ago. So in that context, I didn’t feel like leaving them alone for one week already now, it definitely would look like a “wrong management of priorities” to me.

However, it turns out that my wife and kids won’t be here anyway during the first week of August and, on top of that, Samsung has been so kind to sponsor this trip just based on the simple fact that I’m part of the GNOME community. So, I certainly can no longer find a single reason not to go and spend 7 amazing days in Brno, meeting people that I normally see only in conferences (and this time that group of people will be bigger than ever, since my former mates from Igalia are now also included there), while attending to what it seems to be a very appealing event.

Also, I will try to make the most of the trip to do some work during the different hackfests and BoFs that are already planned, which special focus in the one about accessibility, of course. As a personal goal, I expect to have the chance to move forward some work I’ve been doing lately in the WebKitGTK+ a11y world, such as getting rid of the nasty dependency on Pango/Gail we still have there, something I’ve been already working on for some time now, and which I expect it will be fixed soon, hopefully before GUADEC, although time will tell.

Once that it’s fixed, WebKit2GTK+ based apps should recover the ability to properly expose text through the atk_text_get_text_*_offset() family of functions for different text boundaries, which means that ATs (e.g. the Orca screen reader)  will be able to properly allow again line-by-line navigation when in caret browsing mode. And, as you can imagine, this is quite a big problem these days, since WebKit2GTK+ that has become the default backend for some core apps such as the Epiphany browser with the GNOME 3.8 release, so fixing this is like a high priority now, I’d say.

Samsung LogoAnyway, I’m starting to write too much (as usual) for what it was going to be a short “I’m going to GUADEC” blog post, so I will stop right now, although not without first thanking Samsung for sponsoring this my first trip to the Czech Republic.

See you all in three weeks!

WebKit Contributors Meeting 2013

It turns out I’m writing this post at 6:00 AM in the morning from a hotel instead of doing it at a more reasonable time from my comfy home or a nice cafeteria in Staines. That’s already quite a new thing by itself, and the reason for that is not that I became crazy or something, but the fact that I’m completely jet-lagged in California right now in order to attend my second WebKit Contributors Meeting (my first time was in 2011), this time as part of the Samsung team in the UK R&D center, together with my mate Anton Obzhirov.

With regard to that, it has been a very interesting experience so far where I could meet new people I still haven’t had the chance to see in real life yet (e.g. my mates from other Samsung R&D centers or some guys from Apple I didn’t have the chance to meet in person before), as well as chat again with some friends and former mates that I haven’t seen for a while, such as Martin, Xan and Philippe from Igalia, Byungseon from LG, Nayan from Motorola or Gustavo from Collabora to mention some of them. It’s strange, and at the same time wonderful, how easily you can catch up on conversations with people that you barely see once a year (or even less) and mainly in conferences, and definitely one of my favourite parts of attending these kind of events, to be honest.

Also, from a less social point of view, I have to say I found very interesting the sessions I’ve attended so far, specially the one about “managing the differences between ports”, although the one about “build systems” was quite interesting too. Not sure how far we are yet in the WebKitGTK+ port from realistically switching to some kind of commonly agreed build system (cmake?), but at least it’s a good start to agree on the fact that it would be an interesting move and now that some people pushing for it.

My only regret about this first day is that I missed Hyatt‘s talk about pagination due to some health issues I’m experimenting while in California, mostly due to the extremely hot and dry weather (anything over 25 Celsius is “unbearable hot” for me), which is causing me a little bit of cough, sore throat and fever, all well mixed with the jet lag to make it a perfect “welcome pack” to the meeting. Fortunately, I got some “interesting” medicines that seem to have relieved a bit the pain and I could attend the rest of the sessions without much trouble, other than some occasional coughing. Not bad.

By the way, for those of you who were not lucky enough to attend the meeting but are anyway interested in the topics being discussed here, make sure you check the main TRAC page for the meeting, where you can also find transcripts for most of the sessions.

As for today, some more sessions will take place as well as a couple of hackathons so I expect it to be very interesting as well. Also I hope I can find some time too to work a bit on my patches to remove the nasty dependency on pango we have in WebKitGTK+ accessibility code, which is preventing us to have proper caret navigation in WebKit2GTK+ based browsers, as well as to discuss possible ways in which our lab could collaborate more actively upstream. Seems a promising day already!

Last (but not least), and in a completely unrelated and super-off-topic way, I would like to tell the world that I’m extremely happy for the fact that next week will be the end of my “lonely existence in the UK”, finally. After 4 months of living alone in Staines away from my family with just some flash trips from Friday to Sunday (every 2 weeks), I’m once and for all travelling on Thursday to my home town with a one way plane ticket to do some final arrangements, put everything (family included!) in the car and travel to Santander, where we’ll be taking a ferry that will take us to the Portsmouth (southern coast of England), from where we will just drive to Staines in order to start our new life, all together again.

It has been quite hard for us to live this way for so long, but I think in the end we managed to handle the situation quite well, and now it seems all our efforts are already paying off because things seem to be finally fitting in the right places: we have a lovely house in Staines, we have a place in a nearby public school for my oldest kid to start on September, most of the needed paperwork seems to be done and we already moved all our stuff from Spain (lots of toys!), which is now waiting to be used in our new place.

I really can’t wait to live again in the noisy and chaotic atmosphere that two kids can so easily create around them. Even if that means it will probably drive me crazy every now and then and that I won’t sleep that well sometimes.

Yes. Even considering that.

Multiple cursors, Emacs and me

It’s been 7 years already since I started using Emacs and, for some reason, I still haven’t found a text editor I do feel more comfortable with, and I Swear to Gods I’ve tried. I really did. And as proof, I can tell that those who know me a bit can really support this statement, no doubt about it ;)

The thing is that,  for some reason or another, whenever I tried a different editor, a fancy IDE or anything else, the result was always the same: I first realize of a new and very interesting feature X in the editor Y which makes me think for a while “hmmm… this could be the one”, then I start using that editor Y for a while, then I realize I’m not comfortable enough for many other things, then I realize I’m continuously alternating between that editor and Emacs and then… finally… I somehow manage to “port” that very nice feature X to Emacs and ditch editor Y to finally come back to the origin again.

And that has been the story of my (text editing) life so far. And, as you can see, I haven’t written a blog post about every single feature X I added to my Emacs. But this time is different.

Everything started, as usual, with me willing to try a new text editor, and this time I selected Sublime Text 2 as the one to check, mainly because I wanted to check myself whether of all the hype around it was justified or whether it was just… well… just hype.

And I have to say that I was really impressed by ST2: what I’ve seen is a very nice and modern editor which is blazingly fast and convenient to use, and which on top of that it comes with a lot of useful features and a nice configuration out-of-the box, which is also very easy to customize and extend if you want to. Up to that moment, everything seemed to suggest I could be really in front of a replacement for Emacs, but given my past experiences I still took this with a grain of salt (even if I could not hide my excitement either)…

If you don’t believe me, you should really checkout its website and, even better, the “Perfect Workflow in Sublime Text2″ tutorial and you will see yourself what I’m talking about.

However, not all were bells and whistles in my ST2 experience. There were drawbacks too, and the main ones I could see were that it was not an Open Source editor and that the bus-factor was really scary (only one developer, I think). And those two things together were a serious concern to me. But I tried it anyway, because it really feel like it could be a serious competitor for my Emacs, and I was willing to take the risk, just for the sake of checking it (and playing around with a new editor, which I confess is something I love doing every now and then in any case).

But yet again, the same pattern happened one more time: I found myself loving ST2 in many regards but alternating too often between it and Emacs since, even if ST2 was lovely for many things, there was nothing that was really convincing me of replacing my Emacs in favour of it. Well, almost nothing… because the “multiple cursors” feature in ST2 got my attention as not many text editor features got it in the last years.

So, the obvious step at this point, having already decided that I would be going back to Emacs again, would be to try to port this nice feature to Emacs, and then I found the awesome “Emacs Rocks!” site, where I found a demonstration of this sleek feature working inside Emacs. I´ll leave the link to the video here, so you can really see what all this is about:

As you can see, this feature is amazingly useful for many things of everyone’s life (well, maybe not really everyone’s, but almost!), as it’s incredibly helpful for things like massive “search & replace”, improving code structure (e.g. break a list of strings in one single line into multiple ones) and many other situations.

Others might disagree, of course, but for me there’s a “before” and an “after” I knew about this feature, and I don’t think I will be able to easily move now to an editor which doesn’t have something like this available in some way.

Should you want to try it out yourself, I recommend you to check out both episode 13 in “Emacs Rocks!” as well as the github repository where you’ll find the package for Emacs.

Guess this means I’ll stick to Emacs for some more time after all, even if I’m still not sure I will stick forever to it, since I can’t say either I’m 100% comfortable with it, just that it’s the best thing I’ve found so far. Yet I can’t avoid feeling that I still haven’t found what I’m looking for

Accessibility in [WebKit]GTK+

This past week I’ve spent some time explaining to my mates at Samsung the basics about how accessibility works and is implemented in WebKitGTK+. I realized, yet again, of how messy and confusing everything can be the first time you encounter these things. After all, WebKit is quite a complex project already and accessibility is not a simple matter either.

In order to help them better understand this topic, I wrote a summary to have as reference that explains in my own words which the main pieces of the whole puzzle are, and how they relate to one another. In my experience, it’s not always easy to understand the big picture quickly, and I think this kind of documentation can be quite useful for anyone willing to contribute to accessibility in WebKitGTK+. At least it would have been useful for me when I started working on this. I only regret not having written it before, but better late than never, right?

So let’s begin then. I will start by talking about accessibility-only stuff, which are basically common to any accessible application based in GTK+. Then I will explain the bits specific to WebKitGTK+ and how they fit in the picture.

Accessibility in GTK+ applications

The parts, or “actors”, involved in any GTK+ application from an accessibility point of view are:

  • Assistive Technologies (ATs)
  • AT-SPI (Assistive Technology Service Provider Interface)
  • ATK (Accessibility ToolKit)
  • ATK <-> AT-SPI bridge
  • GTK+
  • GTK’s Accessibility Implementation

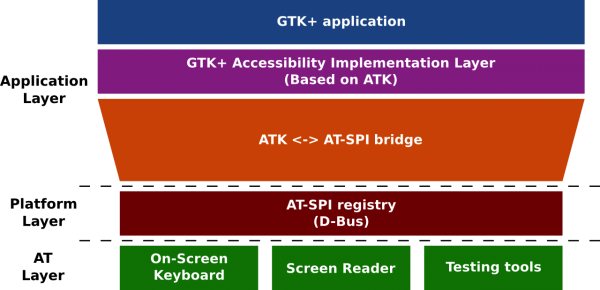

Accessibility in GTK+ applications

Now let’s describe all those points, one by one:

Assistive Technologies (ATs):

ATs are applications whose main purpose is to facilitate access and/or interaction with certain bits of information interesting from an accessibility related point of view, exposed by other applications. This access/interaction can be primarily output based. For instance the Orca screen reader is an AT which provides access via text to speech and/or refreshable braille to on-screen information exposed by editors, browsers, mail agents and other applications.

Other ATs are primarily input based, allowing the user to interact with the exposed applications by executing certain actions over them (e.g. clicking on a exposed link), so it’s not just about “consuming” information. Normally, ATs are called the clients and the applications exposing information the servers, as in the end it’s actually an implementation of a typical client/server architecture.

AT-SPI (Assistive Technology Service Provider Interface):

Set of interfaces that Assistive Technologies (the clients) understand and use to inspect and interact with the accessible content exposed by applications in Linux environments. At some point, “someone” has to provide actual AT-SPI objects (linked together forming a AT-SPI hierarchy) implementing several of those interfaces (depending of the type of object) so ATs can “see them”.

This is the job of the AT-SPI registry, a daemon which takes care of maintaining a hierarchy of AT-SPI objects for every single accessible application in the system, in a centralized way, so ATs can interact with them. It is worth mentioning that the parent/children relationships in that hierarchy are modelled in terms of D-Bus, so different AT-SPI objects can belong to different processes.

ATK (Accessibility ToolKit):

The toolkit used by GTK+ applications to expose accessible representations of the toolkit’s objects, along with appropriate interfaces, on the side of the applications exposing content (the servers). This representation is an almost a 1:1 match with the objects and interfaces defined by AT-SPI (that is, almost).

The main difference when it comes to understanding its place in the puzzle is that AT-SPI is what clients (ATs) understand, and that is not process-bounded (see previous point). ATK, in contrast, is what servers implement to expose accessible information, and it is process-bounded. Thus the parent/children relationships in the ATK hierarchy are modelled by actual references (pointers) between objects living in the same process.

ATK <-> AT-SPI bridge:

The glue that makes sure there’s a mapping between the ATK hierarchy living in the server process and the AT-SPI hierarchy held by the AT-SPI registry. Such a bridge is implemented in terms of D-Bus too, as it needs to communicate with the registry whenever something needs to be updated there, as well as when the server needs to react to external actions coming from ATs (e.g. perform the default action for an object).

GTK+:

The widgets toolkit normally used by applications embedding WebKitGTK+. Explaining what GTK+ is beyond the scope of this post, so I will assume you already know what it is.

GTK’s Accessibility Implementation:

Provides ATK objects implementing different ATK interfaces for every widget from the GTK+ library, and uses the ATK <-> AT-SPI bridge to communicate with the AT-SPI registry. This means that if you use standard GTK+ widgets only, your application will be accessible out-of-the-box. On the contrary, should you use custom widgets, you’ll probably have to write custom ATK objects implementing the proper ATK interfaces to make them accessible too.

So that’s all so far, when it comes to GTK+ applications. Check the following diagram for a more detailed look at all these hierarchies for a hypothetical GTK+ application exposing information and a screen reader accessing it:

Accessibility in GTK+ applications: a specific exampleAs you can see, there’s an ATK tree matching the GTK+ hierarchy, and another AT-SPI tree matching the ATK one. Finally, the screen reader accesses the information through that AT-SPI tree, as explained above.

Accessibility in WebKitGTK+

Now that we already understand the basics of accessibility in GTK+ applications, let’s add the bits specifically related to WebKitGTK+. Namely:

  • WebCore’s Accessibility Objects
  • WebKitGTK+ (ATK) wrappers
  • WebKit2GTK+ specific details

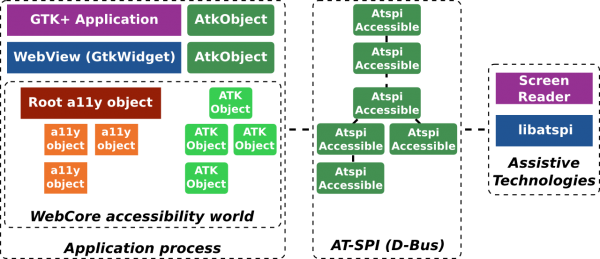

Again, a picture is usually better than just text, so here you have one too:

Accessibility in WebKitGTK+

In order to clarify it a bit more before explaining each point, let’s just say that  you’ll have to look in the dashed box named WebCore accessibility world, where the hierarchy on the left (red & orange) represent the WebCore Accessibility objects, while the one on the right (the green one) represents the WebKitGTK+ ATK wrappers.

With this in mind, let’s examine these three points in more depth:

WebCore Accessibility objects:

Similar to GTK’s Accessibility Implementation, WebCore‘s accessibility objects are the implementation of an independent hierarchy exposing accessibility related information for objects present in a web page. As the mission of accessibility in WebKit is to expose information to users that are normally being rendered in the screen (as well as some other information that might be hidden to regular users), there is a tight relationship between this hierarchy and other ones in WebKit, such as the DOM tree and the Render Objects tree.

This layer is meant to be platform-agnostic, so you won’t find much WebKitGTK+ specific stuff here. Instead, you will find the implementation of the accessibility related specifications published by the W3C‘s Web Accessibility Initiative (WAI), such as WAI-ARIA.

WebKitGTK+ ATK wrappers:

An ATK-based implementation of an accessibility hierarchy where every ATK object will take care of wrapping the proper accessibility object from WebCore, as well as implementing the proper ATK interfaces depending on the situation (e.g. the role of the WebCore accessibility object, some properties coming from the associated Render Object…).

The ATK hierarchy created here is connected with the ATK hierarchy from the embedding application (normally a GTK+ app) by setting the root ATK object in this tree (normally representing DOM‘s root element) as the child of the leaf ATK object in the tree coming from the embedding application (normally the GtkWidget containing the WebView).

As is the case with any other regular GTK+ application, this ATK hierarchy will finally be seen by ATs thanks to the translation that the ATK <-> AT-SPI bridge will do for us, making the whole ATK tree from the WebKitGTK+ based application (from the top level GTK+ window down to the deepest accessibility object inside WebCore) available to the AT-SPI registry by means of D-Bus.

WebKit2GTK+ specific details:

I already talked about this in previous posts, so I will focus here just on commenting the main difference compared to the generic case for WebKitGTK+ described earlier (see previous diagram above):

WebKit2GTK+ implements a split-process model, where the  high level API belongs to one process (the UI process) while the core logic of the web engine lives in another one (the Web process).

From an accessibility point of view, this means that the full hierarchy of ATK objects we had before is also split in two parts: some accessibility objects are now in the UI process and the rest of them will be in the Web process.

To be more specific, we’ll find the following objects in each process:

As I explained previously, these two ATK hierarchies will be seen as a single accessibility hierarchy by ATs thanks to the “magic” of AtkPlug and AtkSocket classes, which takes care of exposing everything together in a single AT-SPI tree. And remember that such a tree is modelled by means of D-Bus, so it does not matter that things are actually in different processes.

Thus, since ATs just  understand AT-SPI, they will see The Right Thing ™ as in the previous case where we have one single process. See the following diagram for a more visual explanation of this:

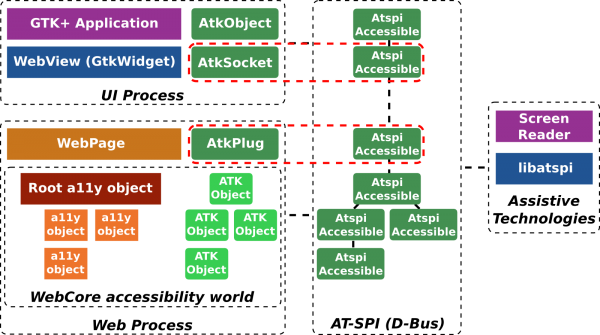

Accessibility in WebKit2GTK+

Wrapping up

So that’s it. At the end the post turned out to be longer than what I was expecting, as my initial idea was to publish the stuff I wrote internally at Samsung this week, but ended up extending it quite a lot!

At least I hope this will be helpful for anyone willing to contribute to accessibility, either in WebKitGTK+ or in a more general way.

After all, most of the stuff I talked about here applies to  every accesible GTK+ application: Assistive Technologies (ATs)AT-SPIATK, the ATK <-> AT-SPI bridge

Last, I would like to thanks Joanmarie Diggs from Igalia for her help with this blog post. One certainly feels more confident writing a long article like this one about a very specific topic when you have one of the most experienced persons on the matter reviewing it!

My first week at SERI

So, after almost 3 months of “holidays”, I’ve finally started working on my new job this Tuesday in Samsung Electronics Research Institute UK (aka SERI), where I’ll join a team mainly working in A/V and DTV related stuff while, at the same time, I’ll keep contributing to WebKit and WebKitGTK+.

Samsung Smart TV Unveils New Smart HubAs you can imagine, being the first week means that I mostly spent my time learning a lot of stuff about my new job and the tools I’d be using, as well as setting up my development environment and getting to know my colleagues and the things we’ll be working on.

But for the time being I have to say that my first impression has already been very positive and that I’m enthusiastically looking at the future and what it’s going to be next. Surely it will be a very different experience compared to what I was used to, but in a way that’s precisely what I was looking for, and so that’s why I feel very optimistic and motivated about it.

Also, and besides work related stuff, being a new resident in the UK also means that I had to spend some time doing some additional things, such as creating a bank account, getting a UK-based SIM card and starting to look for a place that should become our permanent residence in 2-3 months time, once my wife and my children move as well to the UK (they’re still in Spain), hopefully before Easter. Fortunately, being a EU citizen simplifies a lot the whole thing of coming here to work, since I don’t need any VISA or the like. Just my Spanish ID and/or Passport are more than enough.

Anyway, I’ve just arrived in the UK on Monday and started working on Tuesday (yeah, I love having big margins) so still much to do left, but I’m already on my way so it’s a matter of time that we are settled here, and that we start living the “English adventure” all together again.

But in the meanwhile we’ll have to live with me visiting them every 2-3 weeks and the typical audio/video conference tools.

Can’t wait!

Frogr 0.8 released

During the last weeks, I decided to make the most of some spare time I had while still in “nowhere land” (see my previous post) and so I’ve been working in frogr to see if I could release the 0.8 version before the end of the year. In my mind it looked like kind of a nice and humble Christmas present to the world and, at the same time, a interesting way to spent this time I had between my depart from my previous job and the start of the new one.

And it turns out that, at the end, I didn’t manage to have as much spare time as I initially expected to have (I was pretty busy most of the time, actually), mainly due to many unrelated things I needed also to take care of, but in the end I still managed to steal some minutes here and there and I’m now proudly announcing that the new release is finally out.

But before going on, see the mandatory screenshot, as taken in my Fedora 18 machine:

As you can already spot in the screenshot, some changes are already quite visible, but some others are not, so let’s now comment on the most important ones, one by one…

Ported to GtkApplication and GMenu

It’s no secret that one of my favourite changes in this release is the integration with GNOME 3‘s “global menu” (aka the application menu), which makes frogr more beatifully integrated with the desktop than ever. However that came with a price: I needed to port frogr to GtkApplication first and then implement both the application menu and the menu bar using GMenu, which also made me raise the required version for GTK+ up to 3.4.

Sure I could have kept adding more ifdefs to the code to keep supporting previous GTK+ versions, but I also saw this as a good opportunity to clean up the code and get rid of so many conditional compilation units that were increasingly harder to maintain, and so I did it. As a plus, the OS X specific code has been reduced enormously as well, since GTK+ 3.4 integrates very well with OS X without having to do anything special, as I needed to do when I used GTK+ 2.24 for that port.

Loading and saving ‘projects’

This has been one of the features that several people have suggested in the past in different occasions, and so one of those I hope people will enjoy the most with this new release: the possibility to save the current session into a “project file”, so you can resume your work later.

How it works it’s actually pretty simple: when you save a session to a project, frogr will just serialize your current pictures, sets, groups and local tags to a json file (using json-glib) that you can use to restore the state later. It could be more sophisticated, but I think that it works reasonably well in the tests I did considering what it was designed for. In any case, please feel free to report bugs or feature requests to improve or fix things if needed.

Support for video uploads

Believe it or not, frogr has been almost ready to upload videos since some time ago, since for Flickr a video is just a “moving picture”, and it’s treated in exactly the same way than pictures when it comes to the upload API.

The only thing that was missing to remove that almost from here was to generate thumbnails for videos so they could get loaded into the UI. Not rocket science, sure, but something which needed doing and which was not a priority at all until now. And to be honest, it is not a priority yet anyway, but I felt like doing it this time once and for all, so from now on you can upload videos too.

Other features & bug fixes

Besides those three and perhaps more noticeable features, frogr 0.8 comes with several other new things, bug fixes, small changes and refinement that I hope will make this release more stable, useful and fun to use than ever.

Some examples of those other new things are, as taken from the NEWS file:

  • Handle and report errors in a better way (no more mysterious failures).
  • Perform after-upload operations (add to sets/groups, set license…) in parallel.
  • Avoid fetching sets/groups/tags when still not connected yet to Flickr.
  • Hide title bar when main window is maximized (see screenshot above).
  • Renamed the ‘Actions’ menu to ‘Edit’ and brought the ‘File’ menu back.
  • Allow sorting elements in the icon view by size.

Last, I’m also quite happy to tell that the OS X port of frogr has been finally migrated to GTK+ 3 in this release (at last!), and that the whole process of building it for that platform is now easier than ever, thanks to a specific Jhbuild moduleset I created for that purpose, following the lead of GEdit (thanks Nacho for the suggestion).

Check out the README file in the osx/ directory if you feel curious about the process or if you want to build it yourself. It shouldn’t take more than 2-3 commands in the terminal to get something like this running in your OS X machine:

Also, another advantage of having that moduleset created, is that now it’s trivial to properly document (by means of a shell script) the bundle file used to distribute frogr in OS X, instead of just providing an “opaque” pre-compiled bundle, as I used to do in an “unofficial way” with previous versions. Feel free to grab the bundle I’ve just created for this release from the GNOME FTP server.

So that’s it. I hope you enjoy using frogr 0.8 as much as I did writing it, and if you eventually find it useful too, then even better! As usual, check the website of the project for additional information or just to know how to install frogr on your system.
